Choosing the Right Filtration Solution for Industrial Applications

The performance of a cartridge filtration system depends not only on the filter media but also on how effectively the housing directs, contains, and seals the process fluid.

An SS Filter Housing is an important component in modern liquid filtration systems. Designed to hold replaceable filter cartridges, it creates a controlled environment where water or another process liquid can pass through the selected filtration media. Stainless-steel construction makes these housings particularly useful in applications where durability, hygiene, corrosion resistance, and repeated operation are important.

From industrial RO plants and water treatment facilities to food processing, chemical manufacturing, pharmaceuticals, and process industries, filtration housings help maintain a controlled filtration stage between different parts of a system.

The housing may appear to be a simple vessel, but its design can influence maintenance, flow distribution, sealing, pressure drop, cartridge life, and overall filtration reliability.

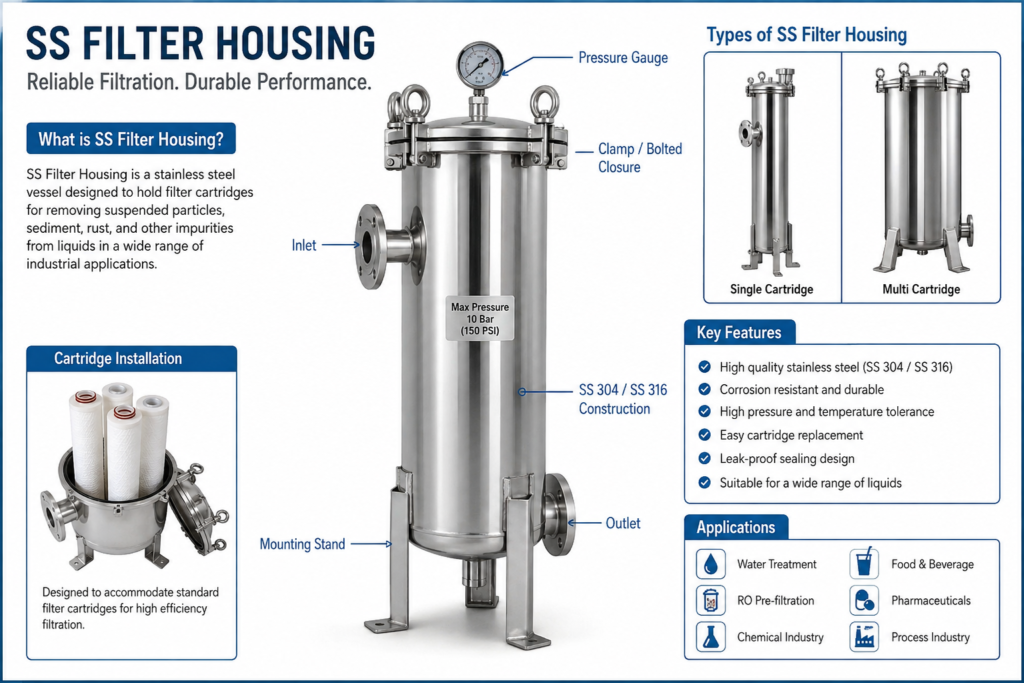

What Is an SS Filter Housing?

An SS Filter Housing is a stainless-steel vessel designed to accommodate one or more cartridge filters.

Its primary function is to direct the incoming liquid through the filter element.

The general process works like this:

1. Unfiltered liquid enters the housing.
2. The housing directs the liquid toward the cartridge.
3. The liquid passes through the filtration media.
4. Suspended particles or other targeted contaminants are retained.
5. Filtered liquid exits through the outlet.
6. The cartridge is replaced when it reaches its operating limit.

The housing itself does not perform the filtration. Instead, it provides the structure, flow path, cartridge support, and sealing necessary for the filter media to work effectively.

This distinction is important when selecting filtration equipment.

A high-quality cartridge cannot compensate for an incorrectly sized or poorly configured housing.

Why Stainless Steel Is Used for Filter Housings

Industrial filtration environments can be demanding.

Equipment may come into contact with water, chemicals, cleaning agents, process fluids, and moisture. It may also operate under pressure for extended periods.

Stainless steel is widely used because it can offer:

• Strong mechanical construction
• Corrosion resistance
• Long-term durability
• Good cleanability
• Compatibility with many industrial applications
• Suitability for repeated maintenance

However, stainless steel is not a universal material for every process.

The correct grade must be selected according to the application.

SS 304 is commonly used in many general-purpose applications, while SS 316 or SS 316L may be considered for environments requiring greater resistance to certain corrosive conditions or specific hygienic requirements.

SS 304 vs SS 316 for Filter Housing

Material selection is an important part of designing a filtration system.

SS 304

SS 304 is commonly selected for general industrial and commercial applications where the process environment is not excessively aggressive.

It can be suitable for many water filtration systems and general-purpose applications.

SS 316

SS 316 contains alloying elements that provide improved resistance to certain corrosive environments compared with SS 304.

It may be considered for applications involving more demanding chemical or hygienic conditions.

SS 316L

SS 316L is a low-carbon version of 316 and is often used in applications where welding characteristics and specific hygienic or process requirements are important.

The best material should be determined by evaluating the actual fluid, temperature, chemical exposure, cleaning process, and operating conditions.

The Role of SS Filter Housing in Water Treatment

Water treatment systems frequently use several filtration technologies.

A typical treatment process may include:

• Pre-filtration
• Sediment removal
• Activated carbon treatment
• Cartridge filtration
• Softening
• Reverse osmosis
• UV treatment
• Final polishing

An SS Filter Housing can be installed at one or more points within this treatment chain.

For example, a cartridge filter can be positioned before an RO membrane to reduce suspended particles.

Another cartridge stage may be installed later for polishing or final filtration.

The housing provides the reusable structure required to accommodate these replaceable filtration elements.

SS Filter Housing for RO Pretreatment

Reverse osmosis is widely used to produce treated water for commercial and industrial applications.

RO membranes require suitable pretreatment because excessive particulate material can increase the burden on the membrane system.

Cartridge filtration can act as a protective stage.

An SS Filter Housing holds the cartridge and provides the controlled flow path needed before water enters the RO membrane section.

The exact filter rating depends on the source water, pretreatment arrangement, membrane requirements, and overall system design.

The housing therefore becomes part of the larger RO protection strategy.

How Cartridge Filtration Works Inside the Housing

A cartridge filter contains a filtration medium designed to retain specific particles or contaminants.

When liquid enters the housing, the internal arrangement forces it toward the outside or inside of the cartridge, depending on the cartridge design.

The liquid passes through the media while the targeted contaminants are retained.

The filtered liquid then reaches the outlet.

For this process to work correctly, the cartridge must be properly seated.

The seals must also prevent fluid from moving around the filtration media.

This is why a Cartridge Filter Housing is more than an enclosure.

Its internal design directly supports the filtration path.

Importance of Proper Sealing

Sealing is one of the most important features of a cartridge housing.

The housing must separate the incoming unfiltered liquid from the filtered outlet stream.

If the cartridge does not seal correctly, a portion of the liquid may bypass the filter.

This can happen because of:

• Incorrect cartridge installation
• Damaged O-rings
• Incorrect gasket size
• Worn sealing surfaces
• Incompatible cartridge configuration
• Improper housing closure

Regular inspection of seals can help identify problems before they affect filtration performance.

The seal material should also be selected according to the fluid and operating conditions.

Single-Cartridge SS Filter Housing

Single-cartridge housings are designed for one filter element.

They can be appropriate for systems where the required flow rate is relatively low or where a compact filtration arrangement is preferred.

Typical applications can include:

• Commercial RO
• Small water treatment systems
• Laboratory filtration
• Process water filtration
• Pre-filtration
• Small industrial units

Their compact design can make them easier to install in systems with limited space.

Multi-Cartridge SS Filter Housing

Large filtration systems may require multiple filter elements.

A multi-cartridge Industrial Filter Housing can accommodate several cartridges within a single vessel.

This allows the available filtration area to increase without requiring separate housing for every cartridge.

Multi-cartridge systems can be useful for:

• High-flow water treatment
• Industrial RO plants
• Manufacturing facilities
• Process liquid filtration
• Large commercial systems

The number of cartridges should be determined according to flow requirements, cartridge capacity, contamination levels, pressure conditions, and process specifications.

Flow Rate and Housing Selection

Choosing a housing only by its physical size is not enough.

Flow rate is a major consideration.

If the system requires a high flow rate but the installed filtration capacity is too small, the cartridges may load quickly and pressure drop can rise.

A properly sized system distributes the required flow across an appropriate amount of filtration area.

For multi-cartridge housings, multiple cartridges can work in parallel to handle higher flow.

This can improve the practical capacity of the filtration stage.

Understanding Pressure Drop

Pressure drop is the difference between the pressure at the inlet and outlet of the filtration stage.

Every filter creates some resistance to flow.

When the cartridge is clean, the resistance is generally lower.

As particles accumulate within the filter media, resistance can increase.

A rising differential pressure can therefore indicate that the cartridge is becoming loaded.

Operators can use pressure readings along with system operating conditions to determine when filter replacement may be appropriate.

This can help prevent unnecessary cartridge changes while avoiding excessive filter loading.

Protecting RO Membranes and Other Equipment

One of the most valuable functions of filtration is equipment protection.

Particles can potentially affect:

• RO membranes
• Pumps
• Valves
• Nozzles
• Heat exchangers
• Spray systems
• Process equipment

Installing a suitable cartridge filtration stage before sensitive equipment can reduce the particulate burden reaching those components.

In an RO system, for example, the cartridge housing may serve as one of the final particulate barriers before the membrane stage.

This means the housing indirectly contributes to the protection of expensive downstream equipment.

SS Filter Housing in Food and Beverage Processing

Food and beverage industries often require filtration equipment that can support hygienic processing.

Stainless steel is widely used in these environments because it provides durable construction and can be incorporated into cleanable equipment designs.

An SS Filter Housing may be used for:

• Process water
• Beverage filtration
• Syrup filtration
• Ingredient filtration
• Liquid polishing
• Final filtration

The housing specification depends on the product, process conditions, cleaning procedures, seals, surface finish, and applicable requirements.

For more sensitive processes, hygienic design can become an important consideration.

Pharmaceutical Filtration Applications

Pharmaceutical processes may require controlled filtration under strict operating conditions.

Stainless-steel housings can be used in certain pharmaceutical applications where cleanability, material compatibility, surface finish, and process integrity are important.

Depending on the application, the housing may require:

• Appropriate stainless-steel grade
• Suitable surface finish
• Compatible seals
• Hygienic connections
• Proper drainage
• Controlled cleaning procedures

Pharmaceutical filtration should always be designed around the specific process and applicable standards rather than relying on a general industrial specification.

Chemical Industry Applications

Chemical filtration requires careful material selection.

Different chemicals can interact differently with stainless steel and sealing materials.

The following factors should be evaluated:

• Chemical concentration
• Temperature
• pH
• Chloride exposure
• Contact time
• Cleaning chemicals
• Operating pressure

An SS Filter Housing may be suitable for many chemical applications, but compatibility should always be verified before installation.

The housing material and gasket material both need to match the process environment.

Surface Finish and Cleanability

Internal surface finish can influence maintenance.

A smooth internal surface can make it easier to clean the housing and remove accumulated deposits.

This can be particularly important in industries where cleanliness is a major process requirement.

Applications such as food processing, beverage manufacturing, pharmaceutical production, cosmetics, and high-purity water may have specific surface-finish expectations.

For general industrial filtration, a different finish may be entirely adequate.

Therefore, the required surface finish should be based on the actual application.

Drain and Vent Connections

Maintenance-friendly features can make a filtration housing more practical.

Before opening a housing, the system should be isolated and pressure should be safely released.

A drain can help remove remaining liquid.

A vent can help release trapped air.

These features can simplify cartridge replacement and cleaning.

In large plants, easy drainage and venting can reduce maintenance time across repeated service cycles.

Cartridge Replacement Procedure

The cartridge is usually the consumable part of the filtration system.

When it becomes loaded, it can be replaced without replacing the entire stainless-steel housing.

A typical maintenance process involves:

1. Isolating the filtration stage.
2. Safely releasing pressure.
3. Draining the housing if required.
4. Opening the housing.
5. Removing the used cartridge.
6. Inspecting the housing and seals.
7. Installing the new cartridge.
8. Closing and securing the housing.
9. Restarting the system according to operating procedures.
10. Checking for leakage and abnormal pressure conditions.

The exact procedure should follow the equipment manufacturer’s instructions and plant safety procedures.

Common SS Filter Housing Problems

Even durable equipment can experience problems when it is incorrectly specified or maintained.

Leakage

Leakage can occur because of damaged seals, loose connections, or incorrect assembly.

Filter Bypass

Incorrect cartridge seating can allow liquid to move around the filter.

High Pressure Drop

A clogged cartridge, excessive flow, or insufficient filtration capacity can increase pressure drop.

Corrosion

An unsuitable material grade or aggressive process environment can cause corrosion.

Uneven Flow

Poor flow distribution can cause some cartridges in a multi-cartridge system to load faster than others.

Maintenance Difficulty

Poor accessibility or unsuitable connections can make cartridge replacement unnecessarily difficult.

Understanding these issues can help operators select and maintain the right filtration equipment.

How to Select the Right SS Filter Housing

Several factors should be reviewed before choosing a housing.

1. Flow Rate

Determine the required process flow and select sufficient filtration capacity.

2. Filter Cartridge

Check cartridge length, diameter, end configuration, filtration rating, and media compatibility.

3. Material Grade

Select the appropriate stainless-steel grade based on the process environment.

4. Operating Pressure

The housing should be suitable for the expected pressure conditions.

5. Temperature

Consider both normal and maximum operating temperature.

6. Fluid Compatibility

Check compatibility between the process fluid, housing material, cartridge media, and seals.

7. Maintenance Requirements

Consider how easily the cartridge can be removed, cleaned, and replaced.

8. Connection Type

Select inlet and outlet connections compatible with the existing piping system.

These factors can help prevent compatibility and operational problems after installation.

SS Filter Housing for Industrial Water Reuse

Water reuse is becoming increasingly relevant as industries look for ways to reduce freshwater consumption.

Treated water may be recovered from industrial processes and sent through additional treatment before being reused.

Cartridge filtration can be one part of this treatment process.

An SS Filter Housing may be incorporated into:

• Process water recycling
• RO pretreatment
• Cooling water treatment
• Recovered water filtration
• Polishing systems

The filtration requirements depend on the source water and intended reuse application.

However, a reusable stainless-steel housing can provide a durable platform for repeated filtration.

Why Reusability Matters

One of the key advantages of cartridge-based filtration is the separation between the durable housing and replaceable filter element.

The housing can remain installed for a long period.

The cartridge can be changed as it becomes loaded.

This arrangement can make maintenance more predictable and can be particularly useful for facilities with recurring filtration requirements.

It also means that the complete housing does not need to be discarded simply because the filter media has reached its replacement point.

SS Filter Housing and Operational Efficiency

Filtration efficiency is not only about removing contaminants.

Industrial users also care about:

• Maintenance time
• Filter replacement frequency
• Pressure drop
• Equipment protection
• Flow consistency
• System availability

A correctly selected housing can support these operational goals.

For example, adequate cartridge capacity can help avoid excessive pressure drop, while convenient access can make cartridge replacement faster.

The housing should therefore be selected with the entire operating cycle in mind.

Why Quality Construction Matters

An SS Filter Housing can remain part of a filtration system through many cartridge replacement cycles.

This makes construction quality important.

Important characteristics can include:

• Suitable stainless-steel grade
• Consistent fabrication
• Reliable sealing surfaces
• Appropriate connections
• Proper internal support
• Suitable pressure capability
• Maintenance-friendly design

A low-quality housing may create recurring problems even when the filter cartridge itself is good.

For industrial applications, long-term reliability should therefore be considered alongside initial purchase cost.

Frequently Asked Questions

What is an SS Filter Housing used for?

An SS Filter Housing is used to contain cartridge filters and provide a controlled flow path for liquid filtration. It is widely used in water treatment, RO, industrial, food, pharmaceutical, and chemical applications.

Can an SS Filter Housing be used before an RO membrane?

Yes. Cartridge filtration inside an SS housing can be used as a pretreatment or protective filtration stage before RO membranes.

What is the benefit of a stainless-steel housing?

Stainless steel can provide durable construction, corrosion resistance, and good cleanability when the correct grade and design are selected for the application.

What is the difference between a single and multi-cartridge housing?

A single-cartridge housing accommodates one filter element, while a multi-cartridge housing accommodates several elements and is generally used for higher flow requirements.

How do I know when a filter cartridge needs replacement?

Pressure drop, reduced flow, contamination loading, and the filtration system’s operating criteria can be used to determine when a cartridge should be replaced.

Can SS 304 be used for all applications?

No. Material selection depends on the process fluid, temperature, chemical exposure, cleaning requirements, and other operating conditions.

Can the same housing be used with different cartridges?

It can be used with different cartridges only when their dimensions, end configuration, sealing arrangement, flow capacity, and process compatibility match the housing.

Conclusion

An SS Filter Housing provides the foundation for reliable cartridge filtration in a wide variety of applications. It creates the controlled environment needed for the filter element to perform, while also providing structural support, sealing, flow management, and convenient access for maintenance.

Its use in water treatment and industrial RO systems makes it particularly valuable for protecting downstream membranes and equipment. At the same time, stainless-steel housings can support filtration requirements in food and beverage, pharmaceutical, chemical, cosmetic, and general manufacturing applications.

Choosing the right housing requires more than looking at its material. Flow rate, pressure, temperature, cartridge configuration, seal compatibility, surface finish, connection type, and maintenance requirements all need to be considered.

When these factors are correctly matched, a Stainless Steel Filter Housing can provide a durable and reusable platform for cartridge filtration.

For industries seeking dependable filtration infrastructure, the right Cartridge Filter Housing can contribute to better process control, easier maintenance, and more consistent filtration performance over repeated operating cycles.
